MAG540 IP STB 4K

$368.00 inc GST

High-performance 4K IPTV STB

Available on back-order

SKU: 305415 Category:

Description

MAG540 and MAG540w3 are Linux STBs powered by the quad-core ARM Cortex-A35 CPU with a brand new Amlogic S905Y4 chipset. This hardware makes the model much more powerful than the legacy STBs. The devices ensure easy and smooth playback of content in all popular modern video formats, including 4K.
With MAG540/540w3, operators can offer reliable service to their subscribers. The interface continuity makes the model easy to integrate into projects that previously used MAG set-top boxes.
Great for Projectors and TV’s without IPTV tuners,

This STB is suitable for TDX and TDcH IPTV and Flow systems.

Reliable and smooth playback

The MAG540/540w3 interface is fast thanks to its high-performance components. The device plays content smoothly and without delays, so users can enjoy it without worrying about rebooting or tweaking.

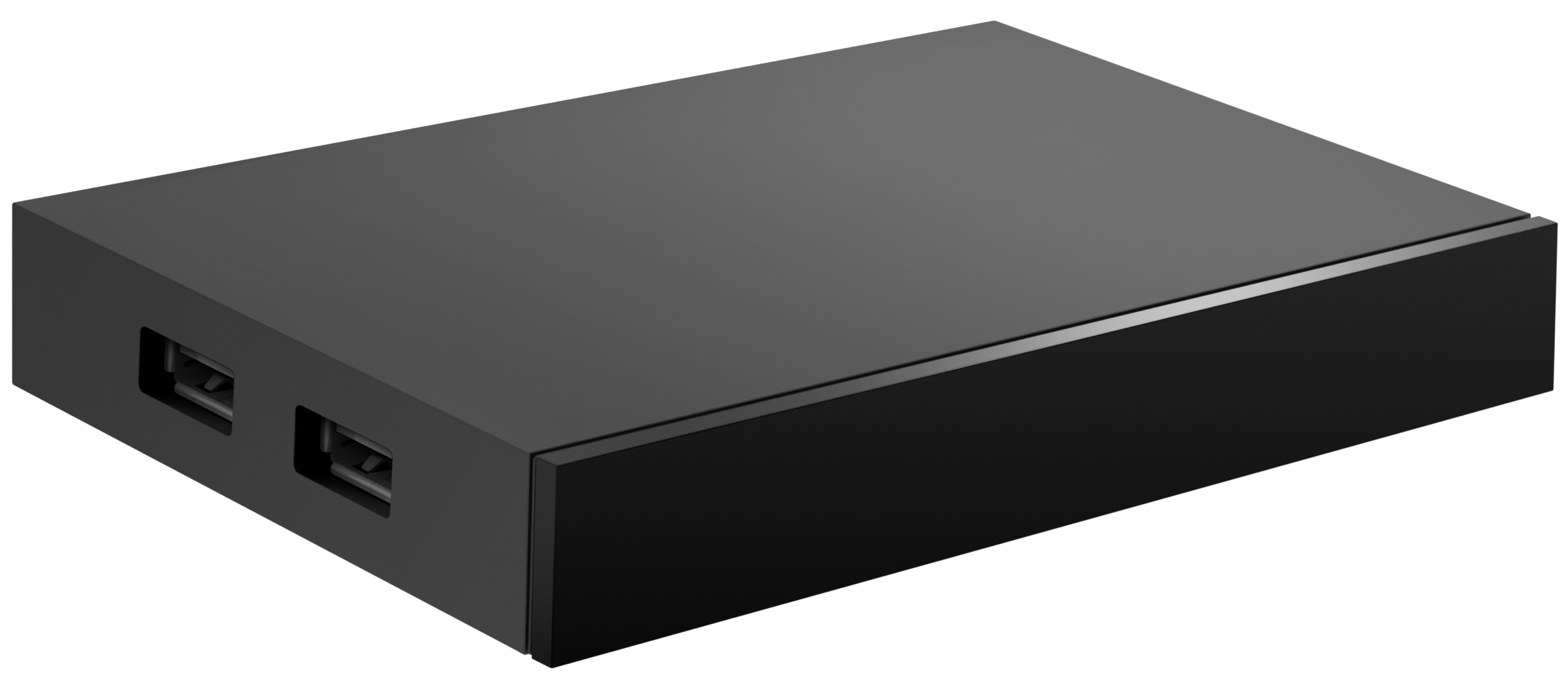

  • Sturdy case with rubber feet
  • HDMI 2.1 high-speed port
  • Quad-core ARM Cortex-A35 CPU, 2,000 MHz
  • 4 GB of eMMC memory
  • 1 GB of LPDDR4 RAM
  • Indicator light
  • USB 2.0 x 2 ports
  • 100 Mbps Ethernet
  • Power
  • Dual-band Wi-Fi module, 550 Mbps (MAG540w3 only)
  • ARM G31-MP2 video accelerator, 850 MHz
  • Infrared receiver





Shipping Information

Shipping Weight 0.5 kg
Packaging Size 230 × 100 × 60 mm

Product Dimensions

127 x 87 x 30mm

Comments

With MAG540/540w3, users can watch linear TV, video on demand, and content from IPTV/OTT providers.1 Also, the set-top box plays content within the local network and from external media.

Download User Manual
